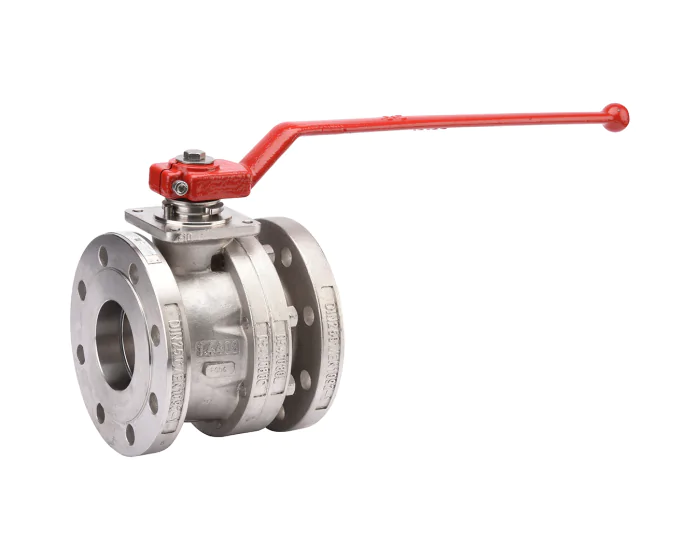

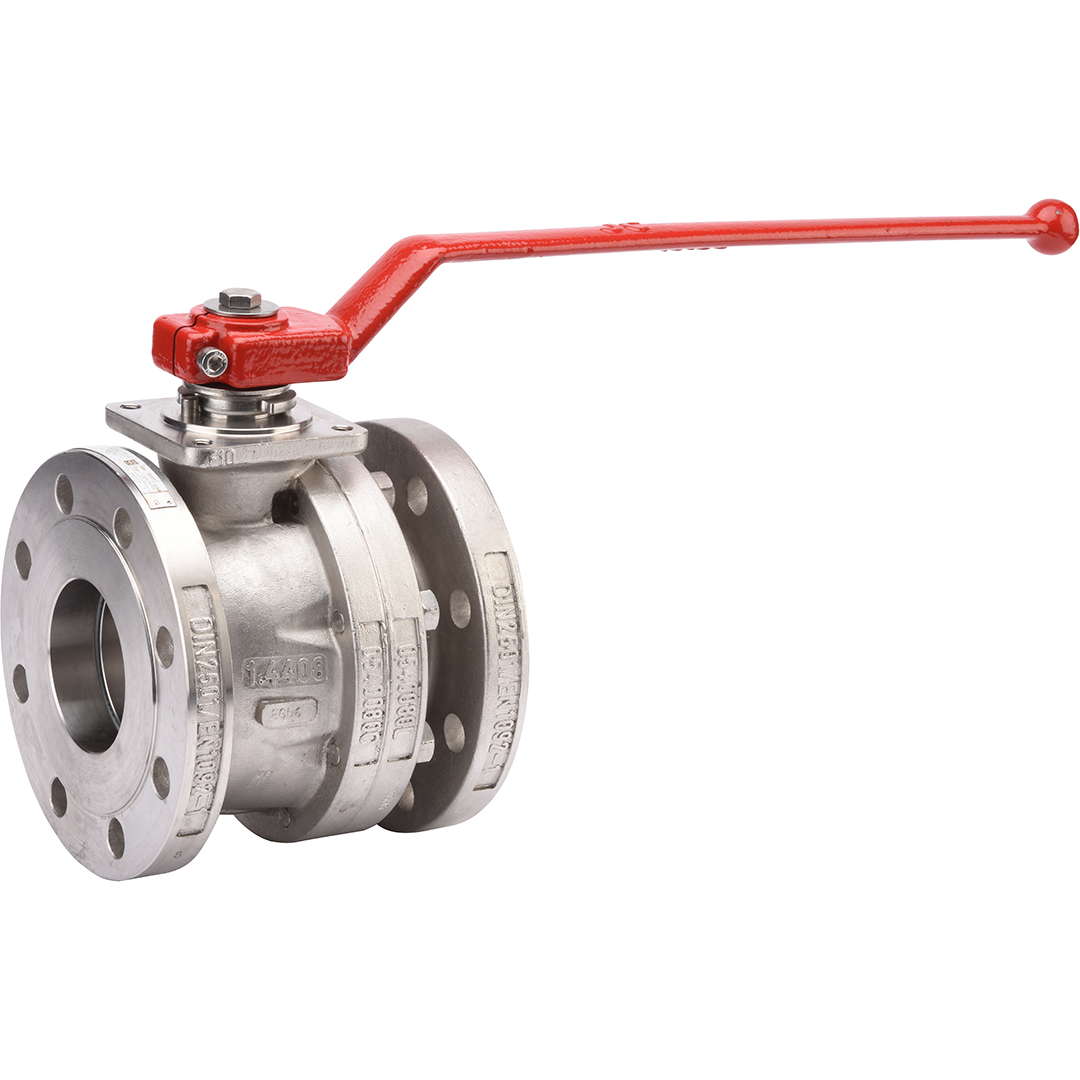

The Sferaco 540IIT series ball valve, JC range, flanged PN40, stainless steel, with full bore, actuation, short DIN, fire safety for petrochemical, water, air, heating industries.
| Specification | Value |
|---|---|
| DN inches NPS | 2''1/2 |
| Option certificate 3.1 | Yes |
| Construction standard | EN 1983 - ISO 17292 - EN 12516 |
| CE risk category | IV Module H1 |
| NACE MR0175 | Yes |
| Fire safe standard | ISO 10497:2004. API 607 V5. API 6FA. BS 6755-2 |
| SIL | SIL 3 |
| EN face-to-face standard | EN 558 Series 27 |
| DIN face-to-face standard | DIN 3202 F4. DIN 3357-2 ff |
| Brand | JC VALVES |
| Tightness test standard | EN 12266-1 Rate A |
| Stem sealing material | Graphite gland packing |
| Antistatic device | Yes |
| Steam | Yes |
| Degassing hole | Yes |
| Opening device | Handle |
| Fugitive emissions standard | ISO 15848-1 Class B. TA LUFT VDI 2440 |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel ASTM A479 type 316 |
| Square, star (mm) | MEP M22x16 |
| ATEX compatible | Yes |
| Torque (Nm) | 61 |
| DN | DN65 - 2''1/2 |
| Face to Face (mm) | 170 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 550 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Seats | PTFE |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 230 |
| TS min (°C) | -50 |
| Ball valve design | Split body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 5 years |
| CE | Yes |
| Handle material | Ductile iron |
| Handle type | Red lever |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN65 - 2''1/2 | 516IIT065 | S1006862 |
€703.26
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN80 - 3'' | 516IIT080 | S1006863 |
€964.77
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN100 - 4'' | 516IIT100 | S1006864 |
€1,373.17
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN125 - 5'' | 516IIT125 | S1006865 |
€2,462.96
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN150 - 6'' | 516IIT150 | S1006866 |
€3,414.16
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN200 - 8'' | 516IIT200 | S1006867 |
€5,738.56
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN250 - 10'' | 516IIT250 | S1006868 |
€10,390.16
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN300 - 12'' | 516IIT300 | S1006869 |
€17,892.86
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN15 - 1/2'' | 540IIT015 | S1006870 |
€166.70
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN20 - 3/4'' | 540IIT020 | S1006871 |
€195.87
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN25 - 1'' | 540IIT025 | S1006872 |
€227.13
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN32 - 1''1/4 | 540IIT032 | S1006873 |
€349.03
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN40 - 1''1/2 | 540IIT040 | S1006874 |
€418.83
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN50 - 2'' | 540IIT050 | S1006875 |
€545.93
(excl. btw)
|
add to cart |
